Management of pancreatic fluid collections

Introduction

Acute pancreatitis is one of the most common diseases of the gastrointestinal tract with multiple potential complications including pancreatic fluid collections (1). Pancreatic fluid collections can also be local complications related to trauma, malignancy, or post-operative. The most common pancreatic fluid collections that require intervention or drainage include symptomatic pancreatic pseudocysts and walled-off pancreatic necrosis. Options for drainage of these collections include surgical, percutaneous, and endoscopic with the latter now becoming the preferred approach due to the advent of endoscopic ultrasound-guided drainage as well as technical advances in the various stents used for management of these pancreatic fluid collections.

Classification of pancreatic and peripancreatic collections

Acute pancreatitis is divided into two types, interstitial edematous pancreatitis, and necrotizing pancreatitis, both of which can lead to local complications including pancreatic fluid collections (2). Interstitial edematous pancreatitis accounts for 80–85% cases of acute pancreatitis while necrotizing pancreatitis accounts for 15–20% (3,4). The revised Atlanta classification is used to define the various types of pancreatic fluid collections which include acute peripancreatic fluid collection, pancreatic pseudocyst, acute necrotic collection, and walled-off necrosis (WON) (2). In the revised Atlanta classification, a distinction is made between collections that are composed of fluid only, versus those with necrosis and a solid component (but may still contain some amount of fluid). Interstitial edematous pancreatitis (Figure 1) can lead to an acute peripancreatic fluid collection (Figure 2) which is considered an early local complication (less than 4 weeks) and a pancreatic pseudocyst (Figure 3) which is considered a delayed local complication (greater than 4 weeks). Similarly, necrotizing pancreatitis (Figure 4) can lead to the development of an acute necrotic collection (seen in the early phase of disease, less than 4 weeks, Figure 5) and WON (a mature collection seen after 4 weeks, Figure 6) (2).

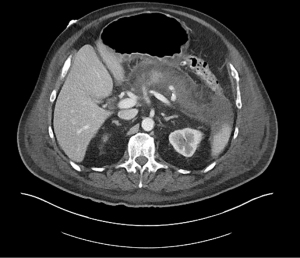

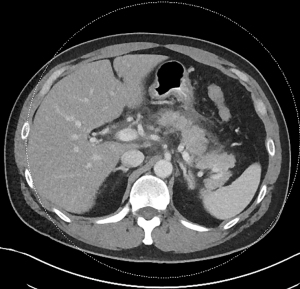

Figure 1 Acute interstitial pancreatitis.

Figure 2 Acute peripancreatic fluid collection.

Figure 3 Pancreatic pseudocyst.

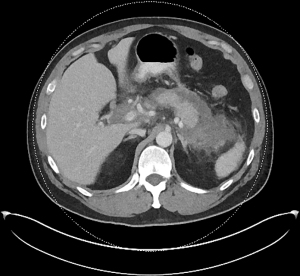

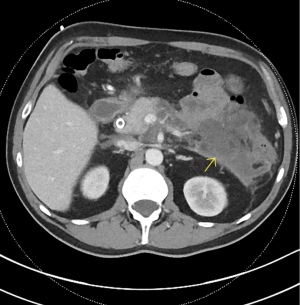

Figure 4 Acute pancreatic necrosis.

Figure 5 Acute necrotic collection.

Figure 6 Walled off necrosis.

The various pancreatic collections have specific morphological features as seen on contrast enhanced computed tomography. An acute peripancreatic fluid collection is homogenous and fluid-filled with no definable wall and is adjacent to the pancreas and seen within the first 4 weeks after an episode of interstitial edematous pancreatitis. A pancreatic pseudocyst, however, is a well circumscribed, fluid-filled encapsulated collection with a well-defined inflammatory wall seen after maturation which typically requires at least 4 weeks. An acute necrotic collection is heterogenous and contains variable amounts of liquid and necrosis, with no definable wall, found in the pancreatic parenchyma or the peripancreatic tissue seen within the first 4 weeks after an episode of necrotizing pancreatitis. WON is also heterogenous with variable amounts of liquid and necrosis, however has developed a well-defined wall with complete encapsulation and is seen after maturation which generally requires at least 4 weeks.

Indications for drainage of pancreatic fluid collections

The management and indications for drainage vary based on the type of pancreatic fluid collection. Acute pancreatic fluid collections remain sterile and often resolve spontaneously without intervention (5). Most other pancreatic fluid collections can also be observed. Drainage is recommended when symptoms develop, including pain or symptoms of luminal obstruction such as nausea, vomiting, early satiety, evidence of superinfection, or signs concerning for biliary obstruction such as jaundice (6). Size alone is not considered an indication for drainage but large collections are more likely to be symptomatic (7,8). Options for drainage include surgical, percutaneous, and endoscopic.

Surgical drainage

Surgical drainage has long been considered an effective therapeutic modality for the management of pancreatic fluid collections. Surgical approaches include both open and laparoscopic techniques. Surgical cystgastrostomy can be performed in the setting of pancreatic pseudocysts and surgical necrosectomy for WON. Prior studies have shown overall success rates after laparoscopic, open, and endoscopic pancreatic cystgastrostomy for pancreatic pseudocysts are essentially equivalent (9). Surgical drainage is the preferred method in multi-loculated collections with several septations. A randomized control trial by Varadarajulu et al. comparing endoscopic and surgical cystgastrostomy for pancreatic pseudocyst drainage showed no differences in treatment successes between the groups, however endoscopic treatment was associated with shorter hospital stays, better physical and mental health of the patients, and lower overall cost (10). For management of infected pancreatic necrosis, van Santvoort et al. performed a randomized trial comparing a minimally invasive step approach, which included percutaneous or endoscopic drainage, to open necrosectomy and concluded that a minimally invasive step-up approach led to a decrease in rates of major complications and death (11).

Percutaneous drainage

Percutaneous drainage remains another modality for the treatment of pancreatic fluid collections. Percutaneous drainage is the placement of an external drain performed most commonly by interventional radiology under computed tomography guidance or ultrasound with fluoroscopic guidance. Studies comparing percutaneous drainage to surgical drainage have resulted in mixed outcomes. Adams et al. performed a retrospective review comparing percutaneous drainage to surgical internal drainage for the management of symptomatic pancreatic pseudocysts and noted that percutaneous drainage was associated with significantly more complications including drain track infection, however percutaneous drainage had a lower mortality rate when compared to surgical drainage (12). Alternatively, Heider et al. also performed a retrospective review comparing the effectiveness of percutaneous drainage to surgical treatment of pancreatic pseudocysts in unselected patients and found percutaneous drainage to be successful in 42% of patients, whereas surgical treatment had an 88% success rate (13). Heider et al. additionally concluded that percutaneous drainage resulted in higher mortality, morbidity and longer hospital stay compared to surgical management (13). A retrospective cohort study performed by Akshintala et al. assessed the outcomes of endoscopic versus percutaneous drainage for symptomatic pancreatic pseudocysts and concluded that although both approaches had similar clinical success rates, percutaneous drainage was associated with significantly higher rates of reintervention, longer length of hospital stay, and increase number of follow-up abdominal imaging studies (14). For the management of complications related to necrotizing pancreatitis including infected necrosis, studies have shown primary percutaneous catheter drainage has fewer complications than primary surgical necrosectomy (15). Percutaneous drainage for the management of infected necrosis remains an important treatment modality, especially in those patients that are critically ill and may not be candidates for endoscopic or surgical drainage. Potential complications of percutaneous drainage include drain track infections, catheter occlusion, cellulitis, and the development of a pancreatic cutaneous fistula (16,17).

Endoscopic drainage

Endoscopic drainage of pancreatic fluid collections, although a relatively new modality compared to surgical and percutaneous drainage, is considered highly effective and often first line therapy for management of symptomatic pancreatic fluid collections (18,19). In 1973, Rogers et al. published a case report describing endoscopic transgastric needle aspiration of a pancreatic pseudocyst, becoming the first ever described case of an endoscopic intervention for a pancreatic fluid collection (20). In 1985, Kozarek et al. published a series of endoscopic cystgastrostomy and cystenterostomy in four high risk patients with pancreatic pseudocysts (21). Initially, these earlier techniques for endoscopic drainage were performed using conventional transmural drainage (described in the following section). Endoscopic ultrasound-guided (EUS) drainage is now the preferred method due to various technical advantages, improved therapeutic accuracy and overall improved outcomes.

Conventional transmural endoscopic pancreatic fluid collection drainage

For the management of pseudocysts, there are various endoscopic approaches including transpapillary drainage, transmural drainage through the gastrointestinal wall or a combination of both (22). As previously discussed, earlier techniques for endoscopic drainage were performed using conventional transmural drainage. In all cases of transmural drainage, the creation of a connection between the gastrointestinal lumen and the collection is required, usually a cystgastrostomy or cystduodenostomy (23). The main difference between conventional transmural drainage as compared to EUS-guided drainage is the initial step in which access to the pancreatic fluid collection is obtained (24). Access to the pancreatic fluid collection in the conventional approach is obtained by localization of a bulge or an endoscopically visible extrinsic luminal compression (25). However, with the advent of endoscopic ultrasound, specific advantages have been recognized including direct real time visualization of the fluid collection, avoiding the risk of inadvertently accessing an alternative structure, avoiding vasculature, the ability to evaluate the contents of the collections, and to obtain a measurement of the distance between the luminal wall and the collection (24). An EUS-guided approach allows for evaluation of the surrounding vascular structures, therefore decreasing the risk of bleeding secondary to puncturing through a vessel, and allows for drainage of collections that do not produce a bulge or extrinsic luminal compression (24). Park et al. performed a prospective randomized controlled trial comparing EUS-guided versus conventional transmural drainage of pancreatic pseudocysts and found that the technical success rate was higher for EUS-guided drainage (26). Similarly, Varadarajulu et al. performed a prospective randomized control trial comparing EUS-guided to EGD-guided transmural drainage of pancreatic pseudocysts and noted a 100% success rate in patients undergoing EUS-guided drainage compared to 33% in those randomized to EGD-guided drainage (P<0.001) but further noted the increased risk of major procedure-related bleeding in patients whom drainage by EGD was attempted (27).

Endoscopic ultrasound-guided pancreatic fluid collection drainage

In 1992, Grimm et al. reported the first case of a pseudocyst puncture under direct endoscopic ultrasound guidance using an oblique echoendoscope followed by use of a duodenoscope for placement of an endoprosthesis (28). In 1996, Wiersema et al. reported a case of pseudocyst drainage performed using a prototype linear therapeutic echoendoscope allowing the entire procedure to be completed with one instrument (29). This was then followed by Vilmann et al. describing the first case of a one-step EUS-guided pseudocyst drainage and deployment of a stent through the echoendoscope in 1998 (30).

The overall approach to EUS-guided transmural pancreatic fluid collection drainage begins with localization and examination of the fluid collection. Features that correlate with endoscopic success include suitable anatomical location adjacent to the luminal gastrointestinal tract, size of collection >5 cm, gut compression with close apposition to the gastrointestinal wall (<1 cm), single cyst, mature cyst and absence of disconnected segment of pancreatic duct (31) (Figure 7). For drainage of pseudocysts, once ultrasound evaluation of the collection has been performed, a 19-gauge EUS needle is used to puncture the cyst wall under continuous direct EUS guidance with careful avoidance of any intervening vessels (32) (Figure 8). Contrast is injected to assess the cavity under fluoroscopic guidance (Figure 9). This is then followed by the introduction of a long guidewire through the needle and into the cyst cavity usually under fluoroscopic guidance (32). Once a tract has been created, dilation is performed either with electrocautery using a needle-knife sphincterotome or mechanically using dilating catheters or balloon dilation (33) (Figures 10,11). The final step of the procedure involves the placement or deployment of a stent (Figures 12,13). Stent type can vary and current therapeutic options include 7 French or 10 French double pigtail plastic stents, a fully covered self-expanding metal stent (FCSEMS), or a lumen-apposing metal stent (LAMS).

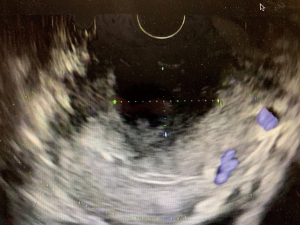

Figure 7 EUS view: PFC. EUS, endoscopic ultrasound; PFC, pancreatic fluid collection.

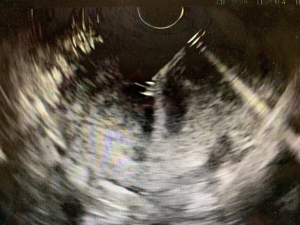

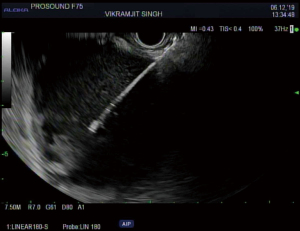

Figure 8 EUS view: insertion of 19-gauge needle into PFC. EUS, endoscopic ultrasound; PFC, pancreatic fluid collection.

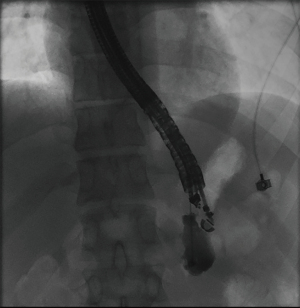

Figure 9 Fluoroscopy view: contrast injection into cavity of PFC. PFC, pancreatic fluid collection.

Figure 10 Fluoroscopy view: balloon dilation of gastric wall tract into PFC. PFC, pancreatic fluid collection.

Figure 11 Endoscopy view: pus drainage after tract dilation.

Figure 12 Fluoroscopy view: plastic stent advanced over wire coiled in PFC. PFC, pancreatic fluid collection.

Figure 13 Endoscopy view: two double pigtail plastic stents.

Pancreatic fluid collection drainage with fully covered self-expanding metal stents

When using a FCSEMS for the drainage of a pancreatic fluid collection, the conventional EUS-guided technique is still utilized. FCSEMS are larger in diameter than plastic stents which allows for improved drainage and decreases risk of stent occlusion. Use of FCSEMS may also reduce the need for placement of multiple plastic stents, which requires repetitive wire access of the fluid collection (34). A retrospective cohort study by Sharaiha et al. looked at 230 patients with pancreatic pseudocysts who underwent transgastric or transduodenal drainage using FCSEMS versus double pigtail plastic stents and concluded that FCSEMS placement was associated with better clinical outcomes and lower adverse event rates, including risk of stent occlusion, stent migration and infection (34). Furthermore, Yoon et al. published a meta-analysis including seven studies comparing metal stents versus plastic stents for the drainage of pancreatic fluid collections and concluded that metal stents were superior to plastic stents due to a higher clinical success rate and a lower adverse event rate (35). Yoon et al. also performed a sub-group analysis noting metal stents had a higher clinical success rate when compared to plastic stents for both pseudocysts and WON (35).

Pancreatic fluid collection drainage with LAMS

LAMS are a novel device used to accomplish endoscopic transluminal drainage by essentially forming a conduit between adjacent but not necessarily adherent lumens in the gastrointestinal tract (36). The stent has a barbell or dumbbell shape with two large flanges intended to decrease the risk of stent migration, which was a concern with FCSEMS (37). LAMS have now been designed with electrocautery-enhanced delivery and are available in a variety of diameters. After identification of an appropriate window without intervening vessels on Doppler (Figure 14), the electrocautery-enhanced catheter is advanced into the pancreatic fluid collection (Figure 15), and the stent flanges are deployed, first within the fluid collection (Figure 16) and then subsequently within the gastric or duodenal lumen (Figure 17). Adjunctive techniques include balloon dilation of the LAMS or double pigtail plastic stent placement within the LAMS (Figure 18). Siddiqui et al. conducted a multicenter, retrospective study of 82 patients with symptomatic pancreatic fluid collections who underwent EUS-guided drainage with LAMS and reported that 97.5% of stents were successfully placed with stent patency of 98.7% (38). Furthermore, LAMS were highly effective in the drainage of pancreatic pseudocysts with 100% success rate and 88% success rate for endoscopic decompression of WON (38). Similarly, Kumta et al. published an international, multicenter experience using LAMS for EUS-guided drainage of pancreatic fluid collections with a study of 192 patients with a technical success rate, defined as successful LAMS deployment, of 98.4% and clinical success rate, defined as resolution of fluid collection at three-month follow up, of 92.6% with low rates of adverse events (39). There are certain advantages of LAMS when compared to other stents used in the management of pancreatic fluid collections including single-step deployment, minimal stent migration and the increased ability to perform endoscopic debridement of the collection (40). There has been, however, recently published data raising concerns about the safety of LAMS. Lang et al. performed a retrospective analysis of 103 patients undergoing EUS-guided drainage of a pancreatic fluid collection and compared the overall efficacy and adverse event rates between double pigtail plastic stents and LAMS (41). The technical success rate was 96% with plastic stents and 94% with LAMS however adverse events including unplanned endoscopy and bleeding was 12% with plastic stents compared to 53% with LAMS (P=0.0003). It is important to note, however, that the number of patients in the plastic stent group was 84 while the LAMS group was 19 which may have drastically limited statistical comparison between groups.

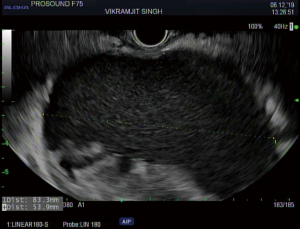

Figure 14 EUS view: PFC. EUS, endoscopic ultrasound; PFC, pancreatic fluid collection.

Figure 15 EUS view: PFC puncture. EUS, endoscopic ultrasound; PFC, pancreatic fluid collection.

Figure 16 EUS view: deployment of LAMS flange within PFC. EUS, endoscopic ultrasound; LAMS, lumen-apposing metal stents; PFC, pancreatic fluid collection.

Figure 17 Endoscopic view: fluid emanating from cyst after deployment of LAMS flange in gastric lumen. LAMS, lumen-apposing metal stents.

Figure 18 Endoscopic view: two double pigtail plastic stents through LAMS. LAMS, lumen-apposing metal stents.

Management of pancreatic WON

As previously discussed, WON is a mature pancreatic collection with complete encapsulation that contains variable amounts of both liquid and solid necrotic components. Endoscopic drainage of WON, when compared to that of pancreatic pseudocysts, was first described in 2007 by Papachristou et al. in which a series of 53 patients from 1998 to 2006 underwent endoscopic drainage and debridement of WON using double pigtail stents that resulted in an 81% clinical success rate with a median number of 3 endoscopic sessions per patient. However, a significant number of patients also required further percutaneous or surgical intervention (42). As previously discussed, FCSEMS have been used in the management and drainage of pancreatic fluid collections, but have a risk of stent migration. With the advent of LAMS, direct endoscopic debridement of WON after stent deployment is possible given that an endoscope can be passed into the collection through the stent lumen with lower likelihood of stent migration. Siddiqui et al. performed a retrospective cohort study comparing clinical outcomes of 313 patients undergoing EUS-guided debridement of WON with double pigtail stents, FCSEMS and LAMS and concluded there was no statistically significant difference in technical success rates in accessing WON between the double pigtail stent, FCSEMS and LAMS groups (99.1% vs. 100% vs. 97.7%). However complete resolution of the WON using double pigtail stents was significantly lower than with FCSEMS and LAMS (81% vs. 95% vs. 90%) (43). Furthermore, the patients that underwent WON drainage with a LAMS required a significantly lower number of repeat procedures as compared with the FCSEMS and double pigtail stent groups (43). Sharaiha et al. published similar retrospective data involving 124 patients undergoing EUS-guided drainage of WON using LAMS with technical success of 100% and clinical success of 86.3% after three months of follow-up (44). Sharaiha et al. further noted an overall stent migration rate of 5.6% in patients undergoing direct endoscopic necrosectomy with LAMS, which was markedly lower when compared with other stent types (44).

Adjunctive techniques for endoscopic management of WON

Management of WON remains challenging and often requires direct endoscopic debridement. Many adjunctive techniques have been utilized to facilitate successful debridement of necrotic tissue.

Antibiotics play a critical role in the management of infected WON although the routine use of prophylactic antibiotics to prevent infection of sterile necrosis has not been shown to be effective (45). Recent guidelines for the management of pancreatic necrosis recommends the use of broad-spectrum antibiotics such as carbapenems, quinolones, and metronidazole when there is culture-proven infection of pancreatic necrosis or when infection is strongly suspected (17). Antibiotic lavage of pancreatic necrosis has also been considered but there is no significant clinical data is currently present to warrant its clinical use. The duration of antibiotic therapy after endoscopic drainage of WON remains unclear however studies have shown longer duration of antibiotics is associated with increased risk of Clostridium difficile colitis (46,47).

Discontinuation of proton pump inhibitors (PPI), when no strong indication for continuation is present, has been another suggested adjunctive technique as it is thought that gastric acid plays an important role in chemical debridement of necrotic tissue by facilitating liquefication of necrosis and preventing bacterial overgrowth (48). A recent multicenter, retrospective study by Powers et al. of patients with WON who underwent drainage with LAMS were divided into two groups, those that used PPI continuously and those that did not have continuous PPI usage during the interval of therapy, and found that there was a significant difference in the required number of direct endoscopic necrosectomies in order to achieve clinical success in the PPI vs. non-PPI group (3.2 vs. 4.6 respectively, P<0.01) (49).

Another reported innovation to improve chemical debridement of necrosis is the use of diluted hydrogen peroxide. Hydrogen peroxide has been used in other clinical contexts such as treatment of abrasions, superficial wounds, and abscesses. Hydrogen peroxide is broken down into water and oxygen by an enzyme known as catalase. When combined with organic tissue, this reaction can lead to the breakdown of necrotic debris. Diluted hydrogen peroxide can be infused into the necrotic cavity and then flushed out (Figures 19,20). At current, there is limited data to support the routine use of diluted hydrogen peroxide however case series have suggested the use of hydrogen peroxide was associated with a reduction in the number of procedures needed for endoscopic mechanical debridement (50,51). It is important to note, however, that the use of hydrogen peroxide when injected into enclosed body cavities has been known to provoke, although rare, fatal to near fatal gas embolisms (52,53).

Figure 19 Endoscopic view: necrotic cavity before diluted hydrogen peroxide lavage.

Figure 20 Endoscopic view: necrotic cavity after diluted hydrogen peroxide lavage.

The use of indwelling nasocystic tubes for irrigation of WON has also been reported. Nasocystic irrigation permits continuous lavage of the WON cavity and was traditionally pursued with saline and is now also utilized with hydrogen peroxide. Although limited data is available, the use of nasocystic tubes in the setting of solid debris within a collection has been associated with greater short term and long-term success when compared to drainage by stents alone as well as decreased rates of stent occlusion (54).

Direct endoscopic necrosectomy (DEN) is another adjunctive technique used for the management of WON. DEN is mechanical debridement performed by passing an endoscope directly into the cavity to facilitate the removal of necrotic debris. DEN may be necessary in collections with large amounts of solid debris and in those that fail drainage with stent placement alone (55). A “step up approach” can be utilized in that DEN is performed only after standard drainage with stents alone or after adjunctive irrigation techniques fail to completely resolve the necrotic collection (56). However, a recent retrospective study by Yan et al. looked at performing DEN for the management of WON at the time of LAMS placement as compared to delayed DEN one week later and found the clinical success rate for resolution of WON in the immediate DEN group was 91.3% compared to 86.1% in the delayed DEN group (P=0.3) and the mean number of necrosectomy sessions was significantly lower in the immediate DEN group as compared to the delayed DEN group (3.1 vs. 3.9, P<0.001) (57). DEN is generally safe but may be associated with adverse events including air embolism, bleeding and perforation; thus, the decision to perform DEN should be made on a case-by-case basis and at a high volume center (17).

Two additional techniques that have been used for the management of WON include dual modality drainage (DMD) and multiple transluminal gateway technique (MTGT). DMD was first described by Ross et al. in 2010 whereby endoscopic transmural drainage was performed immediately after percutaneous drainage (58). A prospective study by Ross et al. reviewed long terms outcomes of 117 patients who had undergone DMD for the management of WON and found that no patients required surgical necrosectomy, there were no procedure-related deaths and no patient developed a pancreatic cutaneous fistula (59). MTGT was first described by Varadarajulu et al. in 2011 in which multiple transmural tracts are created under EUS guidance in order to facilitate drainage (60). When first described, a combination of nasocystic irrigation and placement of double pigtail placement stents was used. Now with the advent of LAMS, this technique is not as frequently utilized but MTGT could be considered if LAMS with DEN fails (55).

Cost effectiveness of LAMS

Although the use of LAMS for the management of pancreatic fluid collections has increased, it is important to note the costs associated with these newer devices. A cost-effectiveness analysis performed by Chen et al. compared plastic stents to LAMS for the endoscopic drainage of pseudocysts. According to their study, the use of LAMS cost on average $17,024 per patient compared to $10,087 for plastic stents with a success rate of 93.9% for LAMS and 97.0% for plastic stents suggesting the use of plastic stents should be preferred over LAMS for the initial endoscopic management of pseudocysts (61). In a cost-effective analysis comparing LAMS to plastic stents for the management of WON, however, Chen et al. concluded that although the use of LAMS was more costly at $20,029 per patient, compared to $15,941 for plastic stents per patient, the increased effectiveness for WON may favor its use over plastic stents (LAMS 92.2% effective versus plastic stents 83.9% effective) (62). Furthermore, the rates of unplanned endoscopy and surgical intervention were both lower with the use of LAMS. The difference in outcomes for the management of pseudocysts versus WON are likely secondary to the favorable stent characteristics of LAMS including their large diameter making obstruction from solid debris more commonly seen in WON less likely and the ability to perform DEN through the stent.

Disconnected pancreatic duct syndrome (DPDS)

DPDS occurs when there is a complete transection of the pancreatic duct resulting in a severe pancreatic leak. DPDS is often secondary to necrotizing pancreatitis but it can also be seen secondary to trauma, post-operative complication, chronic pancreatitis, and malignancy (63). Clinically features concerning for a pancreatic duct leak including the development or recurrence of a pancreatic fluid collection, however the diagnosis and management remains challenging. Current proposed criteria for the diagnosis of DPDS includes the presence of necrosis of at least 2 cm of pancreas on CT or MR imaging, viable pancreatic tissue upstream or toward the pancreatic tail, and extravasation of contrast material injected into the main pancreatic duct at pancreatography (64). Definitive treatment of DPDS is operative resection of the disconnected segment but this is associated with high periprocedural morbidity (17). Less invasive approaches to the management of DPDC include percutaneous, endoscopic or minimally-invasive surgical techniques. Endoscopic management may include transpapillary drainage via endoscopic retrograde cholangiopancreatography (ERCP) with stent placement, transmural drainage via EUS-guided stent placement, or a combination of transpapillary and transmural stenting (65,66). The goal of transpapillary stenting is to alter the pressure gradient and allow for favored transpapillary drainage from the pancreas proximal to the damaged duct. Complete bridging of the transected duct is ideal although technically challenging and thus placement of a transpapillary stent up to the fluid collection is recommended in most cases. The transpapillary drain is typically removed within a 4-week period. The optimal timing of transmural stent placement remains unclear as early stent removal is associated with recurrence of pancreatic leak; however long-term placement of stents may be complicated by stent occlusion, migration, or infection. Permanent transmural stenting may be considered to decrease the risk of recurrence by creating a permanent fistula between the main pancreatic duct and the gastrointestinal lumen (67).

Disadvantages and complications of endoscopic drainage

Although endoscopic interventions remain a successful minimally invasive approach to the management and drainage of pancreatic fluid collections, there are disadvantages and complications that should be considered. With the advent of EUS-guided drainage and the ability to perform the procedure with further imaging guidance, there has been decreased risk of complications given that local structures that could be confused for fluid collections and vasculature can be visualized in real time (68). Furthermore, the technical success rate of EUS-guided transmural drainage of pancreatic fluid collections has been reported to be greater than 90% (19). Disadvantages to EUS-guided drainage include a recognized learning curve given the procedure can be highly technical, especially in light of newer technologies. Procedure times may be lengthy and many patients may require multiple procedures. Increased provider experience and different stent qualities have shown to be associated with significantly improved success rates and decreased rate of complications (69). Complications associated with EUS-guided drainage of pancreatic fluid collections include bleeding, perforation, infection and stent specific complications, including migration and occlusion (70).

Bleeding related to endoscopic drainage can be further subdivided into early and delayed bleeding. Again, one of the advantages of EUS-guidance is to help reduce the risk of bleeding, particularly early bleeding, by visualizing any intervening vessels. Bleeding during the procedure can occur at the site of puncture, even with ultrasound guidance and avoidance of intervening vessels, or from within the cavity (71). Bleeding can also be seen in the setting of pseudoaneurysm development due to stent-induced arterial injury, which often presents after rapid decompression of the pancreatic collection (70). In various published studies, the risk of bleeding varies with a range of 1–10% (70). In a retrospective study of 149 patients by Brimhall et al. undergoing endoscopic drainage of pseudocysts and WON, LAMS when compared to double pigtail stents had a higher risk of pseudoaneurysm bleeding (OR 10.0, 95% CI: 1.2–84.6, P=0.009) (72). In the case of uncontrolled bleeding or presumed pseudoaneurysm bleeding, angiography and embolization by interventional radiology may be required and should be pursued early; in rare cases, surgical exploration may be required (71).

The incidence of perforation during EUS-guided drainage of pancreatic fluid collections varies from 0–4% (70). In a prospective review performed by Varadarajulu et al. of 148 patients undergoing EUS-guided drainage of pancreatic fluid collections, perforation occurred in two patients (1.3%) who had attempted transgastric pseudocyst drainage in the uncinate region (73). The authors noted when compared to other locations, perforation was more common when the fluid collection involved the uncinate process making location of the attempted drainage a possible risk factor (0% vs. 50%, P=0.0005) (73).

Another well recognized complication of endoscopic drainage of pancreatic fluid collections is infection. Infection is most commonly secondary and occurs in the setting of blocked or occluded stents leading to incomplete drainage or entry into and contamination of a previously sterile pancreatic fluid collection. The incidence varies but has reported to range between 0–10% (70). Recent literature has suggested that the addition of double pigtail stents through a LAMS as opposed to LAMS alone for the management of pancreatic pseudocysts is associated with decreased risk of infection requiring reintervention (17% in LAMS only group compared to 0% in the double pigtail stent plus LAMS group, P=0.054) (74).

Stent specific complications include stent migration, stent occlusion and buried stents. Stent migration, as previously mentioned, is a known complication when using plastic stents and FCSEMS and has been reported to range between 1–15% (75). Often migration of the stent at time of final deployment can be mitigated by gradual withdrawal and torquing of the echo-endoscope (71). Stent occlusion is a common culprit in causing secondary infection but can be managed by additional endoscopic debridement, especially in the setting of occlusion secondary to solid necrosis. In the setting of occlusion of a LAMS, the placement of additional plastic stents through the LAMS has been performed to prevent recurrence.

Overall, a recent systemic review and meta-analysis of outcomes related to endoscopic ultrasound-guided cystogastrostomy for pancreatic fluid collections by Renelus et al. included seventeen studies involving 1,708 patients and reported the pooled adverse events rates for metal stents to be 14% and plastic stents to be 18% (76). Overall complications are rare and most can be managed successfully when recognized.

Conclusions

The management of pancreatic fluid collections remains an evolving field with the introduction of new and novel approaches to treatment. Most interventions are targeted towards the management of delayed complications, often four weeks after an episode of acute pancreatitis, which include pancreatic pseudocysts and WON. If there is an indication for drainage such as symptomatic collections or infected necrosis, a step-up approach to drainage should be utilized starting with EUS-guided drainage as the first line management. For the management of pseudocysts, the optimal stent for drainage remains unclear given similar clinical success rates. For the management of WON, current studies suggest the use of LAMS is likely the best approach with high technical and clinical success rates along with the ability to perform DEN. However, the potential adverse events related to the use of LAMS including increased risk of bleeding should be taken into account. The placement of double pigtail stents though a LAMS has been shown to decrease risk adverse events when compared to the placement of a LAMS alone (Figure 21).

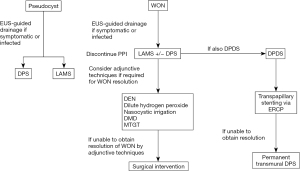

Figure 21 Flow diagram for management of pancreatic fluid collections. DPS, double pigtail plastic stent; LAMS, lumen apposing metal stent; WON, walled-off necrosis; DEN, direct endoscopic necrosectomy; DMD, dual modality drainage; MTGT, multiple transluminal gateway technique; DPDS, disconnected pancreatic duct syndrome; ERCP, endoscopic retrograde cholangiopancreatography.
