Hepatic epithelioid hemangioendothelioma (HEHE)—rare vascular malignancy mimicking cholangiocarcinoma: a case report

Introduction

Hepatic epithelioid hemangioendothelioma (HEHE) is a rare vascular malignancy (incidence <0.1 per 100,000 people) (1). It is a low-grade vascular neoplasm exhibiting behaviour between that of haemangioma and angiosarcoma. However, due to its atypical presentation, and unpredictable clinical course, there is no standardised management pathway for such tumours.

This case highlights the diagnostic and therapeutical challenges of HEHE, including an atypical presentation and inconclusive radiological findings. Due to extensive bilobar disease, we have decided to use a unique management strategy, for HEHE, a modification of conventional associating liver partition with portal vein ligation for staged hepatectomy (ALPPS) technique, which is, to the best of our knowledge, the first of its kind. We present the following article in accordance with the CARE reporting checklist (available at https://tgh.amegroups.com/article/view/10.21037/tgh-20-310/rc).

Case presentation

A 36-year-old man presented in July 2018 complaining of a burning sensation in his chest exacerbated by exercise (Figure 1). At the time of presentation, the patient had no notable past medical history, family history or associated complaints. However, in 2016 the patient complained of loose stools and reflux for an unspecified amount of time, but no diagnosis was established following a colonoscopy and an oesophagogastroduodenoscopy in 2016.

Figure 1 Timeline of the events. US, ultrasound scan; CT, computed tomography; FNA, fine needle aspiration; CIS-GEM, cisplatin-gemcitabine; MRI, magnetic resonance imaging; MDT, multi-disciplinary team; RALPPS, radiofrequency-assisted associating liver partition and portal vein ligation for staged hepatectomy.

The initial physical examination of the major systems, including an abdominal examination was unremarkable. The patient was not jaundiced and did not complain of abdominal pain or discomfort. However, in light of the previous medical history and lack of associated cardiac or respiratory complaints, a routine abdominal ultrasound was conducted and discovered a mass in the left lobe of the liver. Computed tomography (CT) scan of the thorax, abdomen and pelvis confirmed multiple irregular hypoattenuating lesions throughout both lobes of the liver, with no intrahepatic biliary duct dilatation. No extrahepatic nodal disease was found.

Ultrasound-guided fine needle aspiration (FNA) biopsy of the left lobe lesion showed a moderately differentiated adenocarcinoma. The tumour was CK7 positive, CK20 negative, chromogranin/TTF1/CDX2 negative and prostate-specific antigen (PSA)/heat stable antigen (HSA) negative. Upon impression of adenocarcinoma liver metastases, fluorodeoxyglucose (FDG) positron emission tomography (PET) was carried out to exclude occult primary site of malignancy—liver lesions were found to be modestly FDG avid, however, no occult primary was identified. The investigation results were reviewed by a multidisciplinary team (MDT), and the most likely diagnosis was felt to be a primary intrahepatic cholangiocarcinoma with multiple bilobar liver lesions.

The patient was referred to the medical oncology team at our tertiary care centre in September 2018. Hepatic tumour markers were unremarkable at the time of referral [carcinoembryonic antigen (CEA) =1.3 ng/mL, alpha-fetoprotein (AFP) =3.6 ng/mL, cancer antigen 19-9 (CA19-9) =3 U/mL, human chorionic gonadotropin (HCG) <0.1 IU/mL]. Based on initial findings and the working diagnosis of cholangiocarcinoma, the patient was managed by cisplatin-gemcitabine (CIS-GEM) neo-adjuvant chemotherapy.

The case was reviewed in a specialist hepatobiliary MDT during the ninth cycle of CIS-GEM chemotherapy in April 2019. A magnetic resonance imaging (MRI) with contrast (Figure 2) was scheduled and revealed a 33-mm mass in the left lobe and multiple focal lesions (maximum 15 mm) throughout the right lobe. All lesions demonstrated low signal on T1 and high signal on T2 contrast weighting. The 33-mm left lobe lesion exhibited minor peripheral arterial enhancement with gradual filling from the periphery on both portal venous and 5-minute phase. Right lobe lesions showed no enhancement. There was an overall positive response to treatment, with all deposits decreasing in size compared to baseline and no evidence of new intrahepatic or extrahepatic disease (partial response by RECIST criteria) (2). There remained bilobar disease involvement (more marked in the right lobe of the liver) with no evidence of portal vein thrombosis, and appropriately enhancing hepatic veins.

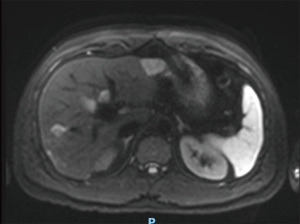

Figure 2 MRI scan of the liver after presentation. MRI, magnetic resonance imaging.

As the patient was young, had a good pre-operative performance status and normal liver function, in light of extensive bilobar disease, it was agreed that the patient was suitable for two-stage hepatectomy. Portal vein embolisation (PVE) was considered as an option, however, due to variant hepatic vascular anatomy (early bifurcation of the anterior and posterior sectoral branch of the right hepatic vein), it was considered challenging and decided against. Instead, portal vein ligation was the technique of choice, diverting away from classical two-stage hepatectomy in favour ALPPS. Stage 1 was a modification of conventional ALPPS—laparoscopic radiofrequency-assisted ALPPS (RALPPS), followed by open stage 2 right hepatectomy, both techniques previously as previously described by the senior author LR Jiao (3,4).

Laparoscopic RALPPS was carried out along with wedge resection of a segment 3 lesion and multiple radiofrequency ablations (RFA) of left lobe lesions in May 2019 without complications. Re-staging CT abdomen and pelvis with contrast was performed 2 weeks later. Future liver remnant (FLR) volume increased from 386 to 436 cm³ (13% increase), and as such was deemed satisfactory for progression to stage 2 (Figures 3,4).

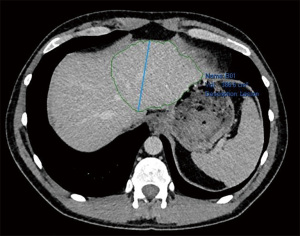

Figure 3 CT scan of the liver after stage 1 of RALPPS showing FLR. CT, computed tomography; RALPPS, radiofrequency-assisted associating liver partition and portal vein ligation for staged hepatectomy; FLR, future liver remnant.

Figure 4 CT scan of the liver before stage 2 of RALPPS showing FLR hypertrophy. CT, computed tomography; RALPPS, radiofrequency-assisted associating liver partition and portal vein ligation for staged hepatectomy; FLR, future liver remnant.

The histological specimen was evaluated. Macroscopically, a pale, oval, and indurated capsular lesion (⌀26 mm) was found in segment 3 specimen. Microscopically, invasion around preserved portal tracts and central veins was observed. The neoplasm was composed of epithelioid and stellate cells, with variable pink cytoplasm embedded in a hyaline sclerotic stroma and poorly formed vascular structures were seen peripherally. Immunohistochemistry of the tumour was positive for CD31 and CD34. Therefore, a histological diagnosis of HEHE was established.

Despite a diagnosis of HEHE, given the number of lesions in the right lobe, we proceeded to open the right hepatectomy as planned (4 weeks interval), again without immediate complications. Histopathology of stage 2 specimens reported multiple deposits of HEHE with vascular invasion, all of which were consistent with those in the left lobe.

Follow-up CT scan at 90 days showed good response to surgical treatment, with almost complete resolution of HEHE lesions and no evidence of distant disease (Figure 5). The patient developed a collection in the gallbladder fossa proximity, believed to be a biloma, and thus was referred to interventional radiology for percutaneous drainage. Few mildly enlarged lymph nodes were noted adjacent to the gallbladder collection. The patient was transferred to a specialist sarcoma team for the continuation of his oncological care and regular surveillance scanning for the next 5 years.

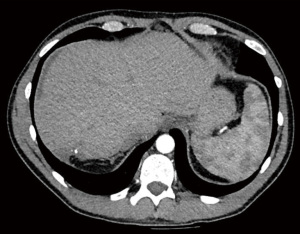

Figure 5 CT scan of the liver after stage 2 of RALPPS. CT, computed tomography; RALPPS, radiofrequency-assisted associating liver partition and portal vein ligation for staged hepatectomy.

All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

HEHE is often overlooked as a differential diagnosis for liver lesions. A previous literature review identified that 60–80% of HEHE patients are initially misdiagnosed, most commonly with cholangiocarcinoma, angiosarcoma or hepatocellular carcinoma (5). The extremely high misdiagnosis rate is likely to be multifactorial, as low incidence, atypical presentation, non-conclusive imaging and specialist histopathology stains requirements all contribute to possible initial diagnostic mistake.

At presentation, patients with HEHE report non-specific symptoms such as right upper quadrant pain, upper abdominal discomfort, weight loss, back pain or malaise; however, up to 25% are asymptomatic. A minority of patients present with a clinical picture consistent with the hepatic origin of the disease (6). HEHE is more prevalent in women than men (3:2 ratio), with the mean age at diagnosis being 42 years (6).

Although multiple imaging modalities can assist in distinguishing HEHE from other hepatic masses, MRI is the most useful one. The majority of HEHE are multifocal, characterised by peripheral location, often extending to the liver capsule with retraction (7). On MRI, HEHE show low signal intensity in T1-weighted images, while showing high signal intensity and characteristic “target-like” appearance (a central high signal with peripheral halo) in T2-weighted images (8). On the hepatobiliary phase, HEHE may exhibit the “lollipop-sign” (hepatic/portal vein tapering at the margin of a defined hypoenhancing lesion) (7). Although these signs can assist in diagnosis, hepatobiliary radiological expertise and clinical correlation are required to correctly identify HEHE based on imaging alone. As such, HEHE is often mistakenly identified as other tumours with a higher incidence and similar imaging characteristics (hepatocellular carcinoma, angiosarcoma or cholangiocarcinoma—as in the case described).

Due to the ambiguity of information provided by imaging, the diagnosis of HEHE can only be confirmed via histological examination. Macroscopically, HEHE is typically a firm, tan tumour. Microscopically, it shows a characteristic zonal pattern of cellularity (hypercellular periphery and hypocellular centre with cartilaginous transition zone). Moreover, lobular architecture remains intact, with portal tract remnants preserved. The majority of HEHE tumours stain positively for factor-VIII related antigen, as well as endothelial cell markers (CD31 and CD34), which is consistent with the vascular origin of the neoplasm (9). Negative staining for markers of other hepatic malignancies (bile, mucin, CEA, AFP) can aid in diagnosis (10). However, these immunohistochemical stains require an existing working diagnosis of HEHE, as they are not routinely performed when analysing liver tissue biopsies. In the case we described, these stains were not performed until the post-stage 1 specimen analysis, highlighting the limitation of the diagnostic pathway for HEHE.

Multiple therapeutic modalities can be used to treat HEHE, but due to the unpredictable clinical course of the disease, a standard management pathway is yet to be established (6). Chemotherapy, radiotherapy and immunotherapy are amongst therapies used for management of HEHE; however, it is difficult to comprehensively assess their effectiveness as evidence for their effectiveness is limited due to low incidence (11,12). Moreover, inhibition of angiogenesis in tumour via interference with the vascular endothelial growth factor (VEGF) pathway has been suggested as a potential treatment (13).

Liver transplantation and liver resection are the only potentially curative options (14). In some cases, transarterial chemoembolisation (TACE) is utilised either as a monotherapy or as an adjuvant to liver resection (15). The radicality of resection is crucial, as HEHE can respond aggressively to incomplete resection margins, due to liver regeneration mediators stimulating tumour growth (16). Unfortunately, such radical resections may not always be possible as estimated future live remnant (FLR) is insufficient and possibly leading to post-hepatectomy liver failure.

In our case, bilobar disease involvement added another consideration for the choice of treatment. Potential options included hepatectomy with pre-operative PVE, conventional two-stage hepatectomy and staged hepatectomy with ALPPS. Due to variant hepatic vascular anatomy, it was decided collaboratively with the interventional radiology team that PVE would be challenging and unlikely to be successful. Moreover, due to its potentially higher capacity for increasing FLR volume, ALPPS was preferred over conventional two-stage hepatectomy.

Our team has implemented a modification of conventional ALPPS technique—RALPPS, which was performed laparoscopically for added benefits of minimally-invasive surgery over its open counterparts (3,4). RALPPS is especially effective for patients with bilobar disease, who have the majority of the tumours located in one of the lobes, as it allows for clearance of FLR of any malignancies and subsequent removal of the infiltrated lobe, while maximally preserving the functional parenchyma.

To the best of our knowledge, this is only the fifth reported case of ALPPS performed for a patient with HEHE, but the first of laparoscopic RALPPS. The results of the previous four cases, combined with our experience, are promising and provide initial evidence of ALPPS being feasible and safe for HEHE patients (17-20). However, due to its high complication rate and mortality, ALPPS should only be performed in specialist hepato-pancreato-biliary centres with strict patient selection criteria, for a subgroup of patients who can benefit from the procedure.

It is also worth noting the diagnostic challenges that we encountered. The patient was initially mis-diagnosed with bilobar intrahepatic cholangiocarcinoma, and the diagnosis of HEHE was only made on the histological examination of stage 1 resection specimen. The diagnosis was agreed upon during the MDT discussions based on from the FNA biopsy results, which has shown moderately differentiated adenocarcinoma. However, the relatively young age of the patient, lack of jaundice and other associated biliary complaints and overall good performance status raised suspicion for a potentially different diagnosis. As such, this case highlights the importance of in including HEHE amongst differential diagnoses for patients with extensive bilobar liver lesions who do not fit the clinical picture of cholangiocarcinoma, hepatocellular carcinoma or liver metastases. Such patients should undergo liver MRI (and not only CT as initially happening in our case), as well as having the specialist immunohistochemical staining (factor-VIII related antigen, CD31 and CD34) of biopsy or resection specimen, to ensure the diagnosis of HEHE is not missed.

The initial misdiagnosis and subsequent treatment highlight the difficulty in HEHE management. RALPPS provides an alternative for HEHE patients who cannot undergo traditional liver resection due to extensive tumour burden, have anomalous portal vein anatomy precluding PVE or cannot receive liver transplantation.
