The use of indocyanine green imaging technique in patient with hepatocellular carcinoma

Introduction

Clinically, indocyanine green (ICG) retention rate at 15 minutes (ICG R15) is the most common perioperative dynamic assessment of liver function that indicates the upper limit of the hepatectomy procedure in patients with hepatocellular carcinoma (HCC) and liver cirrhosis (1). After being approved by FDA in 1950s, ICG was initially used primarily in hepatic function diagnostics (2). Its fluorescence property in which protein-bound ICG emits fluorescence that peaks at about 840 nm when illuminated with near-infrared (NIR) light was then proposed in detail in the 1970s (3). Moreover, the first application of this imaging technique in hepatic surgery was reported by Aoki et al. (4) in 2008 to identify segment and subsegment for anatomical hepatic resection and Ishizawa et al. in 2009 for tumor identification. ICG fluorescence imaging in abdominal surgery was initially limited to open procedures. As laparoscopic fluorescence imaging systems were developed for clinical applications after 2010, ICG fluorescence imaging was widely applied in minimally invasive abdominal surgery, especially for visualizing extrahepatic bile ducts during laparoscopic/robotic cholecystectomy (5), which is known as fluorescence cholangiography (6) and can also be applied in liver cancer surgery.

In 2016 Asia Pacific consensus statement on laparoscopic liver resection held in Hong Kong (7), ICG fluorescence imaging was highlighted with the advantages of real time illumination of occult lesions (8,9) showing a more precise pathology in surgical specimens (10,11). Intraoperative applicability has been described in revealing the surgical margins (12) and identifying anatomical landmarks of the liver (4,13,14). This tool has received acceptance in various surgical disciplines, and it may become standard equipment in near future. However, the technology is relatively new, it may be difficult to demonstrate a statistically significant clinical difference with its application.

This review focuses on mainly the different clinical applications in liver cancer surgery with an emphasis on diagnostic and therapeutic prospective the near-infrared fluorescence (NIRF) can achieve; moreover, practical information on doses, injection times, and intraoperative use are provided.

Materials and methods

We searched for original articles focusing on NIRF imaging to HCC in PubMed published between 2008 and 2018. The search terms we used were ‘indocyanine green’, ‘fluorescence’, ‘liver neoplasms’. All papers identified were English full-text papers limited to human. We also searched the reference lists of identified articles for further papers. Articles focusing on liver neoplasm other than HCC, case reports, and animal studies were excluded.

Concept of ICG NIRF application in HCC

ICG fluorescent signal is more prominent after binding to plasma protein such as albumin, lipoprotein and ligandin in vivo (15-17). It was proposed that HCC cells can take up ICG like normal hepatocytes; however, ICG secretion from cancer cells into the bile is impaired (10,18) (Figure 1). Ligandin (glutathione S-transferases) is uniformly distributed over hepatocytes in a normal liver. The expression of ligandin decreases with liver damage, and it is not expressed in areas of necrosis, fibrosis, or severe inflammation, thus the expression of ligandin becomes relatively rich in the regenerative area (19). Furthermore, the gene and protein expression levels for Na⁺/taurocholate cotransporting polypeptide (NTCP) and organic anion transporting polypeptide 8 (OATP8), which are associated with portal uptake of ICG by hepatocytes were demonstrated to be higher in the HCCs that showed cancerous-type fluorescence than in those that showed rim-type fluorescence, showing fluorescence only in the surrounding non-cancerous liver parenchyma. Therefore, preserved portal uptake of ICG in differentiated HCC cells by NTCP and OATP8 with concomitant biliary excretion impairment causes accumulation of ICG in the cancerous tissues after preoperative intravenous administration. This allows highly sensitive visualization of the pharmacokinetics of organic anions such as ICG in HCC tissues by intraoperative ICG fluorescence imaging (20).

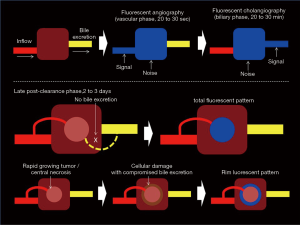

Figure 1 During ICG IV administration, tissue concentration contrast and hence fluorescence contrast is determined by intravascular contributions (vascular phase, about 20 to 30 seconds after administration). As ICG is cleared by the liver and excreted into the bile ducts, an interval of at least 20 to 30 minutes after administration was needed until the fluorescence cholangiography can be identified (biliary phase), while the liver target may remain obscured (noise-to-signal ratio) for 2 to 3 days depends on the liver function. After adequate clearance time, contrast between the target and surrounding tissue is achieved (late post-clearance phase). ICG, indocyanine green.

Clinical application in HCC

Segmentation mapping: positive- and negative-staining techniques [intravenous (IV) and portal vein (PV) approaches]

Since anatomical resection of the liver was first reported by Makuuchi et al. in 1985 (21), it has played an important role in the treatment of hepatic malignancies; however, surgeons may encounter difficulties in harvesting clear demarcation of the hepatic segments based on naked-eye before parenchymal transection, which in turn, may decrease the accuracy of anatomical segmentectomy. Takasaki et al. proposed a similar concept in term of anatomical resection that the Glissonean pedicles can be transected intrahepatically or extrahepatically to identify the boundaries of the intersegmental planes (22).

PV approach

Based on the same principle as dye tattooing of the liver segment to be resected by injecting ICG into the portal vein under intraoperative ultrasound (US) guidance (21), intraoperative fluorescence allows positive enhancement of the segments to be resected, in order to perform a formal liver resection (4). The handling of ICG injection speed under US guidance into the portal vein is relatively technically demanding, as there is a chance of regurgitation or spillover into the noneligible branches. Sakoda et al. reported a puncture method for the target portal branch under percutaneous US with artificial ascites in the case of laparoscopic hepatectomy, which further emphasize the technical difficulty to determine the portal vein territory by staining under intraoperative laparoscopic and percutaneous US (23).

IV approach

Through the Takasaki hilar approach of anatomical resection, the associated Glissonean pedicle transection can then clearly identifying the boundaries of the intersegmental planes (22). Through this approach (Figure 2), a negative contrast delineation can be achieved via an easier IV ICG injection. The surgical difficulty to this technique is one must be familiar to the cone unit principle with the understanding of the possible variations intrahepatic secondary and tertiary Glissonean pedicles (25).

Figure 2 Laparoscopic left hepatectomy, anatomical resection with NIRF negative contrast. A step-by-step demonstration through hilar approach. The parenchymal transection demarcation was clearer under NIRF view that even the bare area covered with coronary ligament could be clearly seen due to the penetrating property of near infrared wave that can go through a certain depth of soft tissue. Fluorescence cholangiography to identify the main bile duct confluence provide targeted signal for dissection and ligation that may avoid the risk of stricture (24). NIRF, near-infrared fluorescence. Available online: http://www.asvide.com/article/view/28308

Identification of liver lesions

ICG, a non-specific molecule, can be uptaked by differentiated HCC cells and remained in the cytoplasm and/or pseudo glands for several weeks after intravenous injection, which allows identification of tumoral tissues by intraoperative ICG fluorescence imaging with high sensitivity (20). Late post-clearance fluorescence illumination observed several days after ICG had been largely washed out from blood by liver, and showed targeted lesion enhancement at high contrast over a rather dim homogeneous normal liver parenchymal background (Figure 1). This can achieve the goals to detect multifocal small lesions which are unidentified on gross white light atmosphere (12). Moreover, the tumor fluorescence enhancement can provide real-time demarcation of liver tumor which is beneficial to harvest a tumor free cut margin especially in non-anatomical resection.

The summary of the ICG applications are shown in Table 1, and their advantages are delineated in the following. Most publications are from eastern countries, predominantly Japan. The dose of ICG most frequently used was 1.25 to 5 mg IV or PV intraoperatively to identify hepatic segment; and, 0.5 mg per kg of body weight administrated, as ICG R15 test, several days prior to surgery for liver tumors identification. The interval of ICG application before surgery was ranged from few minutes to 28 days.

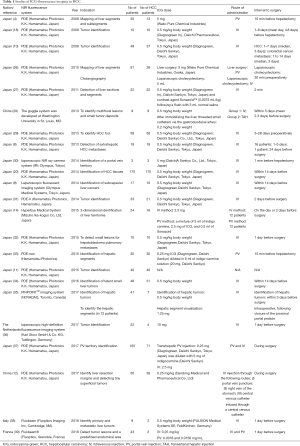

Table 1 Studies of ICG-fluorescence imaging in HCC
Full table

Identifying hepatic segment and subsegment

In 2008, Aoki et al. (4) reported an intraoperative technique for identifying segment and subsegment of the liver with high-sensitivity NIRF imaging for anatomical hepatic resection. Stained subsegments and segments of the liver were identifiable in 33 (94.3%) of the 35 patients. Fluorescence segmentation was concluded safe and reproducible. Their following study in 2010 further demonstrated that this method for clear mapping of liver segments even against a background of cirrhosis. Moreover, they also introduced NIRF cholangiography during laparoscopic cholecystectomy (26).

Miyata et al. (33) further reported the concomitant use of ICG fluorescence imaging with indigo-carmine staining is feasible and may enhance the detectability of hepatic segments during anatomical resection, especially in those whose liver is covered with connective tissues from previous surgery. ICG fluorescence imaging is also potentially useful in patients with liver cirrhosis because the irregularity of the liver surface and fibrosis of the hepatic parenchyma can decrease contrast between indigo-carmine-stained hepatic parenchyma and unstained regions of the liver, although this could not be confirmed statistically in this study.

Alternatively, Uchiyama et al. (27) advocated combining fluorescence navigation system (PDE) using ICG and contrast-enhanced intra-operative US with Sonazoid for detection of liver sections and segments, and demonstrated it to be a useful and safe tool for performing liver resection. It was proved that the resection line using PDE was clearly detected in all 22 patients (P<0.018).

Through laparoscopic setting, Sakoda et al. (30) identified a portal vein territory feeding the domain by ICG injection for NIRF imaging under the guidance of laparoscopic US in order to achieve pure laparoscopic anatomical resection for small HCC (Table 1). This method is considered to be safe with both low invasiveness and curative success. Kobayashi et al. (37) further demonstrated the technical details of five types of fluorescence staining techniques including single staining, multiple staining, counterstaining, negative staining and paradoxical negative staining. These techniques were proven to be safe and facilitate accurate visualization of the PV territory in real time, improving the efficacy of anatomical removal of PV territories.

Inoue et al. (14) reported their applications of fusion ICG-fluorescence imaging in which pseudocolor-fluorescence images are superimposed on white-light color images in real time to the three-dimensional identification of liver territories. By comparing with conventional demarcation technique, fusion ICG-fluorescence imaging obtained more precise and clearer demarcation for anatomical liver resection.

The recent study of Terasawa et al. (35) demonstrated that fusion ICG-fluorescence imaging enhances its feasibility in identifying of hepatic tumors and segmental boundaries during laparoscopic hepatectomy (Table 1). Thus, it might assist surgeons complete laparoscopic hepatectomies safely and accurately. Also, Boogerd et al. (36) proved the added benefit of fluorescence imaging in laparoscopic resections for several hepatic tumors by demarcating liver tumors and thus providing real-time resection margin assessment, and identifying otherwise undetectable occult liver tumors.

Identification of liver cancers

Identification of subcapsular liver cancers

In 2009, Ishizawa et al. reported the first NIR/ICG fluorescence application in liver tumor identification. Eight of 63 HCCs were identified with NIRF imaging that were otherwise imperceptible; 8% of false-positives rate was reported (10). By 2013, the series progressed to 170 subjects and 276 HCCs. False-positive rate dropped to 1%, while 273 of 276 lesions (99%) were identified under NIRF, including 21 grossly unidentifiable lesions (20).

Morita et al. (29) further evaluated the ICG fluorescence imagings and showed that ICG fluorography identified 73 of 76 (96%) preoperatively diagnosed HCC lesions. Other than preoperatively diagnosed foci, NIRF visualized 35 new lesions, including 6 HCCs, 2 dysplastic nodules and 27 non-neoplastic lesions, such as bile plugs and cysts. Overall, the sensitivity of NIRF for HCCs was 96% and its positive predictive value was 71.5%. As a result, Morita et al. also proved NIRF is useful for detecting small liver tumors, especially for HCC; however, the same issue was discussed in doubt of its sensitivity as some lesions visualized under NIR view were not neoplastic.

Tanaka et al. (31) got the same results as Ishizawa’s report concerning with illuminated pattern of liver tumors (10). It was clear that although false positive nodules were not observed in the non-cirrhotic livers, smaller tumors and tumors that were located deeper than 10 mm from liver surface to tumor were difficult to recognize as illuminated nodules. Presumably, 10 mm is the maximum limit of depth for ICG-FNS to detect tumors (31).

Kudo et al. (9) devised the technique for laparoscopic ICG fluorescence imaging and evaluated the efficacy for identifying subcapsular liver cancers in laparoscopic hepatectomy. It was described that like palpation during open hepatectomy, this technique enables real-time identification of subcapsular liver cancers, subsequently facilitating estimation of the required extent of hepatic mobilization and determining the location of an appropriate hepatic transection line.

Kaibori et al. (34) compared the sensitivity, specificity and accuracy of ICG and 5-ALA fluorescence imaging in detecting tumors. The sensitivity, specificity and accuracy of ICG in detecting the carcinomatous main tumors were 96% (44/46), 50% (1/2) and 94% (45/48), respectively. There were nine latent small tumors newly detected on the liver surface using ICG fluorescence imaging, of which five were carcinomas. The sensitivity, specificity and accuracy of 5-ALA for detecting the carcinomatous main tumors were 57% (26/46), 100% (2/2) and 58% (28/48), respectively. Among the five latent small tumors newly detected on the liver surface by 5-ALA fluorescence imaging, all were identified as carcinomas. Thus, sensitivity and specificity of ICG fluorescence imaging for main tumor detection were relatively high and low, respectively, but the opposite was for 5-ALA imaging. Therefore, 5-ALA may provide greater specificity in the detection of surface-invisible liver tumors than using ICG fluorescence imaging alone. The main advantages of ICG are its safety and its commercial availability as a contrast agent (18).

Identifying multifocal lesions and small tumor deposits

Recently, Zhang et al. (12) demonstrated that intraoperative ICG fluorescence navigation system revealed 12 small tumors in 8 patients in whom a preoperative imaging examination did not indicate the existence of these tumors. The smallest lesion was approximately 2 mm in diameter. Therefore, intraoperative ICG fluorescence imaging navigation enabled the high sensitivity for identifying tiny and grossly unidentifiable liver cancer tumors in real time, enhancing the accuracy of liver resection and operative cancer staging.

Identification of metastasis

Identifying extrahepatic metastatic lesions from HCC

In the advanced stage of HCC, extrahepatic metastases often occur in lung, lymph node, adrenal gland, peritoneum, and elsewhere. The first report showing that extrahepatic metastases from HCC retained ICG after intravenous injection, and exhibited fluorescence when illuminated with near-infrared light, indicating their capability to transport ICG, was conducted by Satou et al. (8). This technique can be a useful tool for intraoperative identification of extrahepatic metastatic lesions in HCC patients.

Also, the recent study by Lieto et al. (38) proved that ICG fluorescence imaging accurately identified primary and metastatic liver tumors. Besides, ICG fluorescence imaging was capable to detect small, superficial and subcapsular tumor nodules that have been unrecognized by other diagnostic tools. Therefore, ICG fluorescence imaging is an effective tool to improve both intraoperative staging and radicality in the surgery of primary and metastatic liver tumors.

Detection of small pulmonary metastases

It was reported that ICG techniques was very useful for the detection of small pulmonary metastases because of the high tissue contrast, though the problem of false positive remains (32).

Discussion

The time between ICG injection and hepatectomy of 1 to 28 days has also been the topic of several publications (10,18,29,31,32,36,38,39), while interval not more than 3 days (35) and 2 weeks (20,28,34,40) were also proposed by other groups. The interval is related to liver function: poor liver function and cirrhosis (41) will take much longer to extract ICG from the blood to the bile, as well as complete cellular washout. The longer interval may lower the false positive rate of tumor detection via NIRF imaging; however, there is no consensus yet on the optimal timing interval after ICG injection. And since most studies reported in HCC had ICG injected preoperatively as retention liver function test for hepatectomy, nearly all subjects had bilirubin level of less than 2 mg/dL.

Fluorescence of the tumor identification reported is mainly relied on the late post-clearance effect that ICG stasis in the tumor while most dye has been washout by normal hepatocyte. The only exception was reported from China through intraoperative transarterial approach (28). Liu et al. developed the combination of the fluorescence goggle system and transarterial hepatic ICG delivery, and showed transarterial route of ICG facilitated rapid and selective uptake of ICG in HCC, providing higher imaging contrast between the tumors and normal hepatic tissue than the IV method. With this technique, identifying multifocal lesions and small tumor deposits was successfully achieved (28). However, the transarterial ICG injection to identify multifocal small tumor deposits may have the limitation that tumors enhanced only in a glimpse and the background parenchyma will bright-up and interfered the interpretation identifying well differentiated lesion. The NIRF utilities of segmentation mapping, tumor identification and cholangiography may interfere the interpretation among one another, as the fluorescence signal is based on the partial distribution of ICG by different timing. The late-post-clearance phase tumor identifying fluorescence can be obscure by the intraoperative IV ICG injection for identification of a portal vein territory for anatomical resection; while during fluorescence cholangiography, the bright parenchymal fluorescence is considered to be unnecessary enhancement that bring down the contrast between liver and bile duct, causing a high noise-to-signal ratio. van der Vorst et al. demonstrated the lowest noise-to-signal ratio can be reached when ICG was injected 72 hours prior to surgery (42). However, the subjects were based on colorectal liver metastasis, of which most patients were not cirrhotic.

Irrespective to the tumor florescence pattern, small subcapsular florescence nodules, which is unable to be seen on the white light view, can bright up under near infrared illumination. Criticism of its limitations to detect only superficial lesion, and also the necessity with intraoperative ultrasonography use to harvest a more accurate imaging have been emphasized (40). We applied the near infrared illumination during parenchymal transection, of which the potential risk of missed up daughter nodules can be easily seen on the rough cut surface distributed with clot and cautery burnt tissue (Figure 3,4). These mainly rely on the penetrating property of near infrared wave that can go through a certain depth of soft tissue.

Figure 3 NIRF tumor identification in laparoscopic left sectionectomy, non-anatomical resection with NIRF illumination during parenchymal transection, of which the potential risk of missed up daughter nodules can be easily seen (43). NIRF, near-infrared fluorescence. Available online: http://www.asvide.com/article/view/28309

Figure 4 Although only superficial lesions could be detected, NIRF illumination of the cut surface provided additional information to reconfirm the cut margin was free of gross residual tumor, even on the rough cut surface distributed with clot and cautery burnt tissue (44). NIRF, near-infrared fluorescence. Available online: http://www.asvide.com/article/view/28310

Although Peyrat et al. (39) confirmed that ICG fluorescence imaging is a recommended tool for liver surgeon, as ICG fluorescence imaging can assist by identifying anatomical area, especially on altered liver. They mentioned the possibility of decreasing risk of liver relapse by detecting new metastases especially small and superficial lesions where US imaging is deficient. To date, it is inconclusive neither the new technology can be beneficial to short term outcomes in term of reduce blood loss or shorten operation time; nor long term results to prevent recurrence and to prolong cancer survival. Instead of conventional white light view, the additional fluorescence signal of potential lesions is a fact that more scientific explanations are needed in signal interpretation to further advance its advantage in clinical use. Yet pathologically, Shibasaki et al. (11) demonstrated that the expression of organic anion transporting polypeptide 1B3 (OATP1B3), influx transporter, and multidrug resistance p-glycoprotein (MDR)-3, efflux transporter, were significantly higher in ICG-accumulated HCC (ICG-high HCC) than in ICG-low HCC. ICG was observed in the pseudo glands and bile canaliculi highly expressing MDR3. Furthermore, significantly lower disease-free and overall survival rates were found in patients with MDR3-negative HCC, in which the intratumoral accumulation of some phosphatidylcholine species was observed under imaging mass spectrometry. Thus, the intratumoral expression of MDR3 affected the prognosis of HCC patients, possibly by changing the composition of cancer cell membranous phospholipids (11).

Another limitation of contaminated ICG spillage via lymphatic leakage (Figure 5), intraoperative portal vein or intraductal injection, can cause fluorescent stain under NIR view that cannot be cleared immediately with suction or gauze mopping that can obscure our interpretation to the fluorescent signal. Once ICG leaks into the abdominal cavity, it binds with proteins and emits strong signals that occults critical structures.

Figure 5 ICG contamination through lymphatic leakage. Once ICG leaks into the abdominal cavity, it binds with proteins and emits strong signals that occults critical structures. Intraoperative ICG spillage can cause fluorescent stain under NIR view that cannot be cleared immediately with suction or gauze mopping that can obscure our interpretation to the fluorescent signal. The arrows indicate lymphatic leak associated fluorescence contamination. ICG, indocyanine green; NIR, near-infrared.

Adverse reactions to the ICG injection

The safety and continuity of the utility of NIR/ICG technology should be ensured by learning and education. Although the risk of adverse reactions to the ICG injection is very small (about 0.003% at doses exceeding 0.5 mg/kg) (45), Marshall et al. reported a review of adverse events associated with intravenous ICG administration, death and anaphylaxis could occur with the trend of high dose or at the maximal dose of usage (46). ICG solutions aged after 7 and 30 days of daylight exposure containing only the degraded ICG could trigger severe cardiac arrhythmias within 10 sec after being injected pigs and could result in death (47). To prevent adverse effect, one should always prepare the ICG solution right before injection. If additional injections are needed 6 hours after the first injection, a new vial of ICG should be used. Dosage below 0.5 mg/kg is recommended.

Conclusions

NIRF image-guidance during HCC surgery has the potential to improve patient management by visualizing tissue demarcation in real time, thereby increasing the completeness of surgery and decreasing the morbidity associated with damage to normal structures. Intraoperative imaging requires a synchronous interplay between contrast agents, tumor biology, imaging systems and image-analysis algorithms.

Given the interest in the field, the next decade should clarify the role of NIRF imaging in cancer surgery and the extent to which it empowers surgeons to improve patient outcomes.
