A review of endoscopic ultrasound guided endoscopic retrograde cholangiopancreatography techniques in patients with surgically altered anatomy

Introduction

Endoscopic retrograde cholangiopancreatography (ERCP) is established as the gold standard for the management of disease of the bile and pancreas ducts with expected cannulation rates of 95–97% in the hands of high volume endoscopists for patients with native anatomy (1). With the increased prevalence of bariatric surgery as well as advanced pancreaticobiliary surgical approaches for tumor removal and liver transplants, it is becoming more common for endoscopists to encounter patients with surgically altered anatomy (SAA). Pancreaticobiliary access in SAA patients has been conventionally attempted by enteroscopy-assisted ERCP (EA-ERCP) however with limited success rates of 69.4% (2). Other alternatives for SAA patients include percutaneous or surgical intervention, which may be successful, but are limited by longer recover times, patient discomfort and significant rates of adverse events related to indwelling catheters and surgical recovery. Thus, the need for more minimally invasive means for pancreaticobiliary access in SAA patients is apparent has led to the development of endoscopic ultrasound (EUS) guided access techniques. EUS-guided pancreaticobiliary drainage (EUS-PBD) is based on the concept of accessing the pancreatic or biliary system using a EUS needle, through which wire access and various routes of drainage can be achieved. Because pancreaticobiliary access is performed transmurally usually from the stomach or proximal duodenum, this can be very useful in SAA. EUS-PBD can be indicated in cases of choledocholithiasis, post-operative leakage, strictures, and cholangitis (3). EUS guided biliary drainage (EUS-BD) was first described in 2001 by Giovannini et al. for treatment of obstructive jaundice caused by pancreatic head mass and resultant dilated common bile duct (4). EUS-BD serves as an alternative for enteroscopy-assisted ERCP, laparoscopic-assisted ERCP, and percutaneous transhepatic biliary drainage. Several advantages exist when performing EUS-BD, including the ability to perform it in the same session after failed ERCP, possibility to perform intra and extrahepatic (EH) drainage, using a minimally invasive approach, overall shorter hospital stays and lower adverse events than percutaneous drainage (5-8).

Techniques

Currently EUS-BD involves three different techniques for biliary drainage: anterograde, transluminal, and rendezvous method. Anterograde EUS-BD involves achieving wire access in an antegrade fashion across ampulla or bilioenteric or pancreaticoenteric anastomosis to achieve drainage. Transluminal drainage implies creating a new pancreaticoenteric or bilioenteric fistula. The rendezvous method includes placement of a guidewire across the ampulla/anastomosis itself, which can then be grasped or utilized by a duodenoscope to perform conventional ERCP. For patients with SAA, generally the rendezvous method is of limited utility given the decreased ability to endoscopically access the ampulla.

Rendezvous technique

Similar to percutaneous access of the papilla via guidewire, this technique employs EUS guidance for ampullary access and cannulation. Using endosonography and fluoroscopy, the bile duct or pancreas duct can be accessed by a transgastric or transduodenal approach with a 19G fine needle aspirate (FNA) needle. Through the needle, a guidewire is advanced across the ampulla or anastomosis and looped into the small intestine. After this placement is secured, the echoendoscope is removed and conventional ERCP can be reattempted with the guidewire in place as an access point to the pancreaticobiliary system (3). While the rendezvous technique can be used to access both intrahepatic (IH) and EH bile ducts, the success rate in case reports has varied from 35–100% (9-16). The range of complications has been reported to be from 10–25% (9-18). Post-procedure bile leak and peritonitis are the most feared, as well as pancreatitis, pneumoperitoneum, abdominal pain, and sepsis (17,18).

Antegrade drainage

Steps for performing this are identical to the rendezvous, by creating an enterobiliary or enteropancreatic fistula initially to access the ductal system. Placement of guidewire is done through a 19G FNA needle, followed by with dilation of the bilioenteric or pancreaticoenteric tract to allow for device passage. Once this is in place, various therapeutic interventions such as stent placement, balloon dilation, or sphincteroplasty can be performed through the EUS scope in an antegrade fashion. The goal of antegrade drainage is to place a stent across the ampulla or anastomosis itself just as one would achieve in conventional ERCP. Antegrade EUS-BD in SAA has been shown to have a clinical and technical success rate of 95% with a mild adverse event rate of 20% (8). One limitation of this approach is that a biliary sphincterotomy is not performed prior to intervention, and thus may theoretically increase the rate of pancreatitis if large metal stents are placed. Although a procedural risk is causing a bile leak, no cases of biliary peritonitis from the temporary fistula creation have been reported (19).

Transluminal approach

In the transluminal approach, the concept is to create a pancreatico or bilioenteric fistula proximal to the level of obstruction to bypass the blockage and achieve a new route of drainage. EUS-guided biliary or pancreatic duct access can be achieved with a 19G needle through which a guidewire can be placed in the obstructed duct. After securing the guidewire in the duct of choice placement of a transmural stent can be performed. When using the guidewire method usually the fistula needs to be dilated prior to stent placement. However, with new electrocautery-enhanced catheter deliver systems of lumen-apposing metal stents, it is possible to directly puncture the place a stent from the duodenal bulb into the EH bile duct in a single step (20). Preferred approaches include hepaticogastric (HG) or choledochoduodenal (CD). To avoid bile leaks and peritonitis, uncovered metal stents should not be used with the transmural approach (3). During transmural EUS-PD generally a small caliber plastic pancreatic duct stent (5–7 Fr) is placed from the stomach directly into the main pancreas duct.

Tools and techniques

EUS-BD can be performed safely for indications of IH or EH diseases. For EH, a linear echoendoscope is advanced to the duodenum or distal antrum, from where the dilated EH biliary tree can be more easily accessed. The goal is to obtain the shortest approach to a large target EH bile duct that gives the endoscopist the best control over therapeutic maneuvers. For IH disease, a linear echoendoscope is advanced to the gastric cardia or lesser curvature, for a transgastric approach to target the dilated left hepatic biliary system. Given that that ampulla is difficult to access in many SAA cases, generally rendezvous techniques are of limited utility in this population. If the ampulla or anastomosis is not easily accessible, generally the antegrade approach is preferred, and if this fails a transmural approach can be utilized.

To maximize chances of success and minimize complications it is important to have a plan of approach along with all the necessary equipment easily available prior to beginning a EUS-PBD procedure. The following tools are important for the procedure (Table 1).

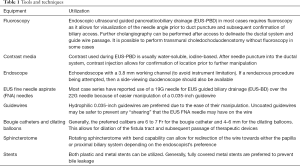

Table 1 Tools and techniques
Full table

Altered anatomy

Surgically altered anatomies where the duodenum and major papilla are not accessible endoscopically and require non-standard endoscopic techniques include Billroth II, Roux-en-Y gastric bypass (RYGB), classic and pylorus preserving pancreaticoduodenectomy (Whipple), Roux-en-Y hepaticojejunostomy (HJ). Success rates of ERCP in patients with SAA has been quoted to be as low at 51–55%, due to inability to reach the papilla secondary to acute angulations or distance to the papilla, with complications seen in up to 20% of cases (21-26).

Billroth II

Billroth II is usually indicated for treatment of gastric cancer or severe peptic ulcer disease. It is performed as a subtotal distal gastrectomy, with the proximal stomach attached to the proximal jejunum in an end-to-side anastomosis. Access to the papilla occurs through the afferent jejunal limb. Endoscopic challenges with this anatomy include angles and adhesions that can develop post operatively, as well as orientation of the ampulla being reversed from native anatomy. This makes cannulation much more difficult and alternate methods such as opposite direction cannulation or use of a straight catheter may need to be employed (3). There is also an increased rate of bowel perforation at the gastrojejunal anastomosis with duodenoscope advancement. A large series of 713 patients undergoing ERCP with Billroth II anatomy showed an overall cannulation rate of 81.3%, 4.3% adverse event rate with 1.8% incidence of bowel perforation (27). Generally, ERCP in patients with Billroth II can be achieved with a standard duodenoscope with the patient in the prone position. EUS can be safely performed in patients with Billroth II altered anatomy. The linear echoendoscope is better for visualizing the bile duct and pancreatic head, as well as for the pancreatic neck (3). In a group of 25 patients with altered anatomy, forward viewing echoendoscope allowed visualization of the head of the pancreas and the common bile duct in all of the patients (28). The rendezvous approach may be reasonable in Billroth II anatomy if the duodenoscope can be advanced to the ampulla, otherwise an antegrade approach would be the best alternative.

Roux-en-Y gastric bypass (RYGB)

RYGB serves as a very common bariatric operation for weight loss. The procedure includes creation of a gastric pouch from the proximal stomach (between 15 and 30 mL), exclusion of the remnant stomach, and creation of a gastrojejunal anastomosis between the pouch and the distal jejunum to create the roux limb. The excluded stomach remains connected to the duodenum and jejunum, and is termed the biliopancreatic limb, through which biliary and pancreatic secretions flow. It is this afferent limb that must be accessed for conventional ERCP to be performed. Challenges in RYGB with accessing the ampulla include the distance to reach the ampulla, which can be upwards of a 100–150 cm, tight angulation of the jejunojejunal anastomosis, and postoperative adhesions (3,29). Conventional duodenoscopes usually cannot reach the ampulla, thus EA-ERCP has been used. EA-ERCP is limited due to challenging scope positions and an inability to use conventional ERCP tools without an elevator (3). Successful PB intervention with EA-ERCP in bariatric patients has been reported to be as low as 63% in multicenter studies (30).

To circumvent the need to EA-ERCP, EUS-directed transgastric ERCP (EDGE) was first described in 2014 to perform conventional therapeutic ERCP in patients with RYGB using EUS-guided access of the excluded stomach. The technique involves EUS-guided creation of gastrogastric or jejunogastric fistula, via placement of a fully covered, lumen-apposing metal stent (LAMS) to access the excluded stomach and perform conventional anterograde ERCP (19). A key technical aspect of the EDGE procedure is to use a LAMS with a large diameter (≥15 mm) to prevent leakage and allow for passage of a duodenoscope. Generally, for non-emergent indications, EDGE is performed in 2 stages to allow for maturation of the fistula and reduce the risk of stent migration during passage of the duodenoscope. If stent migration occurs and there is a not a mature fistula tract (which may require around 4 weeks to form), then a free perforation of the excluded stomach may occur and require emergent surgical intervention. The fistula can be left open with a LAMS in place until completion of all endoscopic therapy has been achieved. Once further interventions are not planned, the stent can be removed and gastric or jejunal defect can be closed endoscopically (with clips or suturing). Early outcomes of the EDGE procedure have been encouraging with successful therapeutic ERCP intervention in 96.5% of cases. EDGE was found to be non-inferior to LA-ERCP in terms of efficacy and safety, with shorter procedure time and hospital stay (31). EDGE has also been compared to EA-ERCP and been shown to have higher technical success (100% vs. 60%), shorter procedure times (49.8 vs. 90.7 min), shorter hospital length of stay (1 vs. 10.5 days) and comparable rates of adverse events (10% vs. 6.7%) (32). The concern of possible weight gain with temporary RYGB reversal has not been substantiated as current studies have reported weight loss after the EDGE procedure (31,33).

Whipple procedure (pancreaticoduodenectomy)

The Whipple procedure is employed primarily for treating cancer at the head of the pancreas, common bile duct, ampulla of Vater or duodenum near the pancreas. It can be performed with pylorus preserving technique as well. Resultant altered anatomy includes total loss of ampulla with subsequent anatomic markers. Post-surgical anastomoses include a pancreaticojejunostomy, choledochojejunostomy, and gastrojejunostomy. Challenges associated with performing ERCP post-Whipple include difficulty identifying and intubating the afferent limb to access the choledochojejunostomy or pancreaticojejunostomy due to angulations and adhesions. In general, ERCP in patients with Whipple anatomy can be achieved with a pediatric colonoscope with the patient in supine position. The overall success rates of colonoscope-performed ERCP and EA-ERCP in Whipple anatomy for biliary access ranges from 84–93% (34-36). Pancreatic duct access however is much more challenging with significantly lower success rates with anecdotal success rates of 8% (36). Conventionally patients with pancreas duct disease after Whipple resection require some form of surgical intervention for management including reoperation of the anastomosis, Peustow, or possible completion pancreatectomy. EUS-PD is a significant improvement over conventional ERCP attempts and may help avoid the need for surgery in these patients. Multiple international multicenter studies on EUS-PD in Whipple anatomy have shown technical success rates of 89–92%, clinical success rates of 81–88%, and overall adverse events of 20–35%, which were mild to moderate in nature (37,38).

Roux-en-Y HJ

Roux-en-Y HJ or choledochojejunostomy (bilioenteric anastomosis) is performed for select cases of biliary stricture, bile duct injury, or bile duct tumor. Conventional access of the bilioenteric anastomosis with a duodenoscope or colonoscope is very challenging and often not possible due to the length of the roux limb. EA-ERCP access in HJ has reported clinical success rates of 82% (35). EUS guided hepaticoenterostomy (EUS-HE) can been used to locate and access left sided IH ducts from the stomach or jejunum to create a HE, through which various forms of intervention can be achieved. Early case series have reported technical success rates of 92% and adverse event rates of 8.1% with EUS-guided antegrade biliary interventions (5,39). EUS-HE has been described in one or two stage procedures. In a single stage procedure, the interventions mimic those described above of the EUS-BD antegrade therapy. In two stage procedures—a hepaticoenteric fistula is formed with an 8–10 mm fully covered metal stent through which an ultraslim endoscope or cholangioscope can be passed at the second procedure for biliary intervention (i.e., lithotripsy, biopsy, etc.). Early experiences with EUS-HE have been reported with reasonable success and adverse event rates (40,41).

EUS-PBD: current evidence

In recent years, EUS-PBD for various indications has been increasingly performed at expert EUS centers with encouraging outcomes. A large meta-analysis of 1,192 EUS-BD patients revealed technical success rates, clinical success rates, and adverse event rates of 94.7%, 91.7%, and 23.3% (42). There is no significant difference in the overall technical success and safety of transhepatic or transduodenal access (42,43). In comparison to percutaneous biliary drainage EUS-BD has been shown in multiple studies to have higher clinical success rates, lower rates of adverse events and reintervention, along with lower hospital length of stay and costs (5,44-46). When comparing EUS-BD to EA-ERCP in an international comparative study, the technical and success was higher for EUS-BD (98% vs. 65% and 88% vs. 59%), with shorter procedure times (55 vs. 95 min); although length of hospital stay and adverse events were more common in the EUS-BD (47,48). As a mode of primary biliary intervention for distal malignant biliary obstruction EUS-BD has also been compared to ERCP in retrospective and prospective trials showing similar clinical success of achieving biliary drainage (>90%) but with possible benefits of lower rates of post-procedure pancreatitis and need for biliary reintervention due to increase stent patency (49-51). With the current available evidence, it suggests that EUS-PBD is a reasonable and possibly superior method of biliary drainage compared to percutaneous and EA-ERCP methods in centers of EUS expertise.

Conclusions

For bile and pancreatic ductal disease, ERCP serves as the gold standard for management and therapeutic interventions. High success rates are seen in native anatomy, but SAA proves to be more challenging. Existing alternatives to endoscopic therapy including percutaneous and surgical intervention have significant limitations. Thus EUS-PBD has emerged as a minimally invasive option that can be performed in single sessions after failed conventional ERCP in patients with SAA, with the ability to deploy stents, use balloon dilator systems, and provide treatment for pancreaticobiliary diseases. Currently it has only been seen as a second line therapeutic approach after failed conventional ERCP. Further evidence is needed to determine if it should be used in distinct cases of primary biliary intervention over conventional ERCP as this would be a monumental shift in clinical practice.

As endoscopic techniques and technologies continue to advance, in the hands of expert echoendoscopists, EUS-PBD serves as a promising route for pancreatobiliary interventions in patients with SAA to have interventions traditionally only possible via device-assisted ERCP, laparoscopic-assisted ERCP, or percutaneous drainage.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
