Modified palliative biliary stenting in situs inversus totalis patient with carcinoma gallbladder: feasibility and technical details

Introduction

Situs inversus (SI) is a congenital condition in which the major visceral organs are reversed or mirrored from their normal positions. Reported overall incidence of SI in adults is 1 in 5,000–20,000 (1). In the most common situation, SI totalis involves complete transposition (right to left reversal) of all of the abdominal organs. The exact anatomical relationship of the organs and the adjacent vasculature is essential prior to any complex hepatobiliary invasive procedures such as endoscopy, surgery and radiologic interventions in patients with SI. We report a case of successful percutaneous biliary stenting of carcinoma gallbladder in association with SI, with good clinical results.

Case presentation

A 75-year-old female presented with one and a half months history of progressive painless jaundice, pruritus, and anorexia and weight loss. An incidental diagnosis of SI totalis was made on a prior abdominal sonography examination. On physical examination, a hard mass was palpated in the left hypochondrium. Abdominal sonography again demonstrated the SI, along with a left sided sub-hepatic mass with associated intrahepatic biliary radical dilatation (IHBRD). CT scan with contrast demonstrated a gallbladder mass causing hilar obstruction with resultant IHBRD (Figure 1). Magnetic resonance cholangiopancreatography (MRCP) showed abrupt biliary hilar obstruction consistent with malignant hilar biliary obstruction (Figure 2). Fine needle aspiration cytology confirmed the diagnosis of cholangiocarcinoma. Endoscopic retrograde cholangiopancreatography (ERCP) was unsuccessful, due to the variant anatomy. She was referred to interventional radiology for percutaneous biliary drainage and palliative biliary stenting.

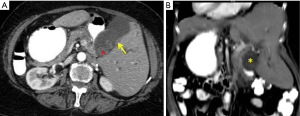

Figure 1 A 75-year-old female with situs inversus with carcinoma gallbladder. (A) Axial CT scan with contrast demonstrates left sided liver and right sided stomach. Focal gallbladder wall thickening (yellow arrow) with loss of plane of cleavage with the adjacent liver segment. Note multiple gall stones (red asetrix); (B) coronal reconstruction CT images demonstrates left sided gallbladder (yellow asterix) with bi-lobar IHBRD. IHBRD, intrahepatic biliary radical dilatation.

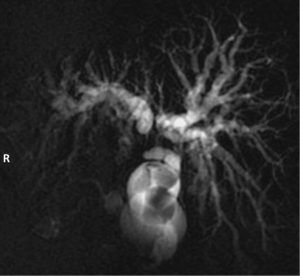

Figure 2 MRCP image reveals abrupt biliary hilar obstruction consistent with malignant hilar biliary obstruction. MRCP, magnetic resonance cholangiopancreatography.

Pre-procedural workup included platelet counts, coagulation profile [prothrombin time/international normalized ratio (PT/INR)], liver function tests as well as white count. Patient was kept fasting for 6 hours prior to the procedure and subcutaneous heparin dose was omitted. Subsequent to the pre-procedural workup, the patient was planned for percutaneous trans-hepatic biliary drainage, using fluoroscopic and ultrasound guidance. Few procedural modifications from the standard procedure protocol were made. The operator worked from the left side of the patient. This involved appropriate positioning of the monitors and ultrasound machine.

After obtaining informed written consent, the procedure was performed with fluoroscopic and ultrasound guidance and under all aseptic precautions. Conscious sedation using two rounds of 1 mg IV Midazolam and 50 µg of IV Fentanyl were performed under direct radiologist’s supervision. Sequential percutaneous punctures of segment III, V and VI biliary radicles were done, subsequently the hilar stricture was negotiated using a 0.035-inch 145-cm angled hydrophilic guidewire and was dilated using a 10 mm × 4 cm PTA angiography balloon (Cook, USA). Subsequently an indigenous stainless steel fenestrated biliary stent (Hybrid^TM, patent awaited, Lucknow, India) was placed from the segment III puncture with fenestration at the hilum, facing segment V and VI (Figure 3). Then via the fenestration, 10 cm and 8 cm self-expendable kissing metallic stents (Niti-S^TM Taewong Medical, Seoul, Korea), were placed in segments VI and V respectively (Figure 3) with the distal end at the papilla. External biliary drainage catheters were then placed. Overall, total duration of the procedure exceeded by 25 minutes secondary to the complex anatomy. The total procedure time was approximately 65 minutes. Capping trial was started after 24 hours of the procedure.

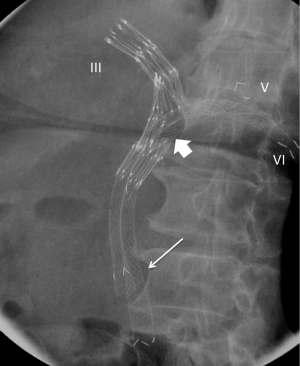

Figure 3 Spot fluoroscopic image demonstrate reconstructed biliary hilum using kissing metallic biliary stents through segment V and VI with distal end at the ampulla (arrow). Note that the segment V and VI stents pass through the fenestration of the segment III indigenous stainless steel stent at the hilum (thick arrow).

Significant improvement in pruritus and liver functions were achieved. Follow up ultrasound examination showed resolution of previously identified IHBRD, with expected post procedural minimal residual pneumobilia. External catheters were removed on 4^th post-procedural day after successful capping trial and the patient was discharged on the 5^th post procedural day on injectable antibiotics for a total duration of ten days. Total hospital duration was 7 days including a post procedure hospital stay of 5 days.

Discussion

SI is a rare congenital anomaly, with reported incidence of 1 in 5,000–20,000 cases (1). It is hypothesized to be an autosomal recessive condition due to chromosomal abnormality, with a genetic locus on chromosome 12, leading to a reversal of left-right polarity of the organs (2). SI can be partial or total; simple or complicated.

A few case reports in literature document associations of SI with some benign and malignant diseases (3,4). Of note, a high incidence of pancreatic, bile duct and ampullary, hepatocellular and gastric cancers has been documented (5,6). SI concomitant with gallbladder cancer is a rare entity, with only one reported case (7). Several documented reports of surgical procedures in SI patients have encountered greater technical difficulties due to altered anatomy (8); however, the present case is the first report on the technical details and feasibility of percutaneous biliary interventions in this scenario.

Although literature is sparse on the technique modifications during surgery and endoscopy (5,8,9), there is none available on the details of technical alterations during radiologic interventions in SI cases. In the present case, special consideration was made regarding the right-left reversal and the complex biliary hilar anatomy. As the patient and the equipment was repositioned in the fashion that it simulates the normal anatomy instead of right-left reversal, it was observed during the procedure that the left handed interventionists don’t have an additional advantage.

The present case focuses on reconstruction of the malignant biliary hilar stricture using self-expandable metallic stents. We used the fenestrated stent in our patient to decrease the percutaneous access route and hence morbidity, similar to previously described cases (10). There are various technical advantages of extending the distal tip of the biliary stent across the ampulla. Firstly, two stents were deployed side by side in Y configuration so that one should not traverse the mesh of the other; secondly, were deployed simultaneously to maintain equal expansion rates and thirdly, it prevented the accidental over dilation at the ampulla and thus obviating the risk of ampullary injury.

In conclusion, the present case highlights the technical details as well as the modifications of a standard percutaneous biliary drainage procedure and biliary stenting in a case of gallbladder cancer in SI patient.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Informed Consent: Written informed consent was obtained from the patient for publication of this case report and any accompanying images.
